Rock Drilling
Our Rock Drilling process utilises a concentric system, which simultaneously drills the rock with a down-the-hole hammer whilst installing a steel pipe. This means that the bore is sleeved at all times, so the risk of losing the bore due to collapsing rock is eliminated, making it a more favourable method than using an open-hole system.
Due to the fact that the concentric system sleeves the bore as it drills there is no open void created at anytime, which offers greater security to railway lines and rail traffic. The steel sleeve gives stability to the drill as it progresses and prevents deviation.
The rock-drilling hammer, with the pilot bit attached, is driven by an Auger Boring rig and powered by air. The ring bit, with internal bayonet coupling, is attached to the steel pipe using a casing shoe. The pilot bit is attached to the ring bit.
Both the pilot bit and ring bit rotate and cut the hole, which is sufficiently large to allow the casing shoe to pull the steel pipe through the bore. The ring bit rotates freely on the casing shoe, which is welded to the first pipe. During drilling the steel pipe does not rotate.
Advantages Of Rock Drilling
- Cost Effective solution to rock or boulder crossings
- Straight & Accurate bores
- Fast & Reliable in adverse ground conditions
![Rock Drilling Rock Drilling](http://www.dunnesdrilling.com/wp-content/uploads/2020/07/Screenshot_9-400x300.png)

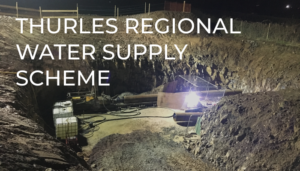

![THURLES REGIONAL WATER SUPPLY SCHEME THURLES REGIONAL WATER SUPPLY SCHEME](http://www.dunnesdrilling.com/wp-content/uploads/2020/08/IMG_4105-scaled-400x300.jpg)
Pipe Size
- 300mm
- 450mm
- 600mm
